Maxi stator identification

Hi Guys,

I’m struggling to identify what cable does what on this 5 wire stator. It’s from a Puch Maxi

I know the Blue is ignition but it would be nice to know what each colour does.

Thanks in advance.


Re: Maxi stator identification

Original wiring


Re: Maxi stator identification

Moped Lar (OFMC) /

All the various Puch wiring diagrams are in the wiki. Look under "Puch".

Re: Maxi stator identification

Ye, I’ve looked but nothing seems to resemble what I have!

Re: Maxi stator identification

DJLou Magnetos ($M$) /

Here is a diagram I put together, this is my guess on how it might be wired up. Let me know if this helps, is wrong, or correct. Good luck.

Re: Maxi stator identification

Thanks Dude, that’s super useful. I’ll let you know how it goes.

Re: Maxi stator identification

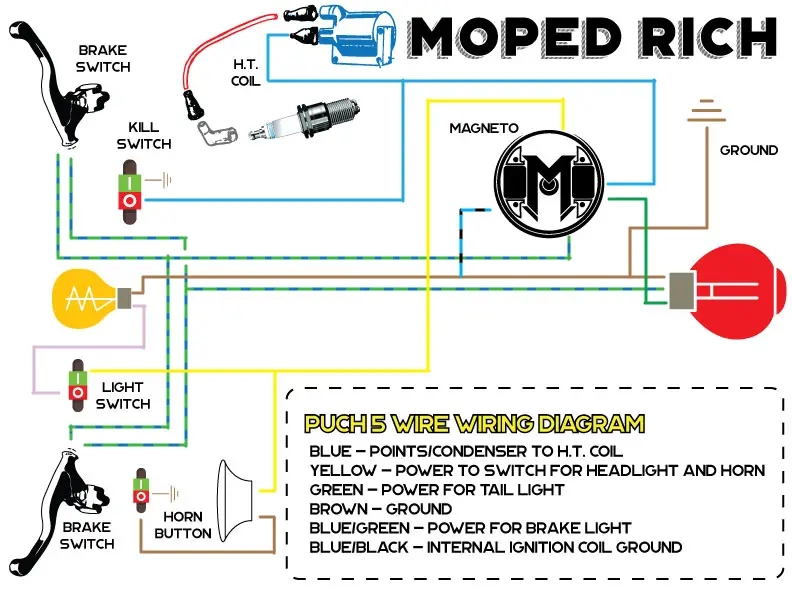

5-wire magneto wiring diagram.
